Description:
Our EZ-Path Series 44+ Multi-Gang Brackets are the best solution when dealing with high cable counts in fire-rated wall assemblies. No other other firestop solution available is cable of supporting the density and volume of cables while maintaining Fire, Smoke, and Acoustical seals.

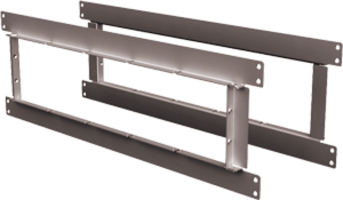

The EZP544W and EZP544WD are adjustable and can accommodate for the installation of additional devices over the lifetime of the installation with a maximum device capacity of 5 and 10 devices respectively.
The EZP644W and EZP644WD have unmatched cable density, becoming the go to solution for high volume cable pathways.
Advantages:
- Unbeatable density, more devices in less space than competing solutions
- Retrofittable, can be installed around existing cables
- Can be installed directly to steel stud framing prior to gypsum board layers
Disadvantages
- The EZP644W and EZP644WD both need to be fully populated and are not designed to accommodate for future devices like the EZP544W and EZP544WD can
- Cannot be installed vertically, needs to be installed spanning stud to stud
- Requires attachment to framing members
