EZ-Path Series 33 Fire-rated Pathway

EZ-Path Series 33 Fire-rated Pathway
EZ-Path Series 33 Fire-rated Pathway
EZ-Path Series 33 Fire-rated Pathway
EZ-Path Series 33 Fire-rated Pathway
EZ-Path Series 33 Fire-rated Pathway
EZ-Path Series 33 Fire-rated Pathway

EZ-Path Series 33 Fire-rated Pathway

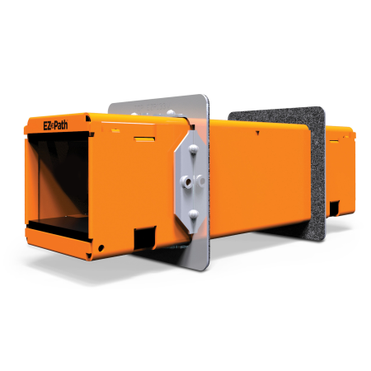

The EZ Path Series 33 Fire-Rated Pathway is a maintenance-free pathway solution for moderate cable volumes through fire-rated walls and floors. The Series 33 incorporates built-in intumescent pads that automatically adjust to cable fills. When exposed to flame and high temperatures, the intumescent pads expand to form a dense insulative char that prevent the passage of smoke and flame.

en-us
Test Standards ASTM E90
 ASTM E814 (UL1479)
 CAN/ULC-S115
Third Party Approvals
Contact Us
Key Resources
Ferramentas essenciais

BIM Object(s)

Modelo 3D interativo

EZ Path Estimator

Features

  • Self Sealing design providing exceptional F&L Ratings
  • Designed for New and Existing conditions
  • Full Suite of plate configurations for any field scenario

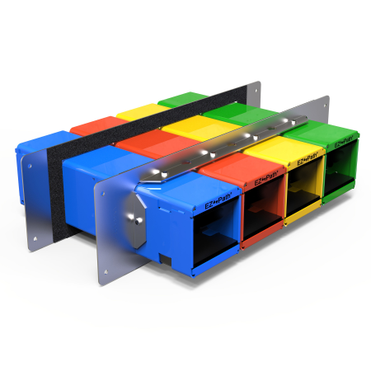

  • Available in an array of colors for easy cable pathway management
  • Allows for easy Moves, Adds, and Changes
Applications
Cables

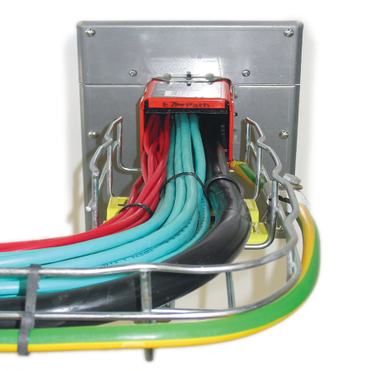

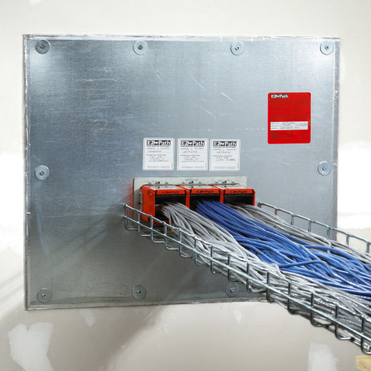

Cable Tray
Properties
Finished Product
Intumescent
No Expiration
Paintable
Re-Enterable
STC Rating
Zero Maintenance
Smoke Barrier

Specifications

Property Value
Shell Composition 0.059" Galvanized Steel (1.5 mm)
Cable Loading Area 6 sq in (nom.) - 39 sq cm
Allowable Cable Fill 0% to 100% Visual
Fire Resistance Ratings 1, 2, 3 and 4 Hour
Expansion Begins 350°F (177°C)
Volume Expansion 15x
Sample Cable Volume Cat 6 (0.236" OD) 88 (nom.)
In Service Temperature -10°F (-23°C) - 120°F (49°C)
Storage Temperature Less than 120°F (49°C)
Shelf Life No Limit

Ordering Information

Catalog Number UPC Number Description (UOM) Qty. Case Qty. Weight (Each) Image
EZD33E 730573000052 EZ-Path Series 33 Fire-Rated Pathway Extension Module 1 1 lbs EZ-Path Series 33 Fire-Rated Pathway Extension Module
EZD33FWS 730573000045 EZ-Path Series 33 Fire-Rated Pathway Device, Device only and labels 1 6 2.7 lbs EZ-Path Series 33 Fire-Rated Pathway Device, Device only and labels
EZDP133CAK 730573000366 EZ-Path Series 33 Fire-Rated Pathway Conduit Attachment Kit, Full kit with device, One pair (2) conduit attachment plates & labels 1 1 4.05 lbs EZ-Path Series 33 Fire-Rated Pathway Conduit Attachment Kit, Full kit with device, One pair (2) conduit attachment plates & labels

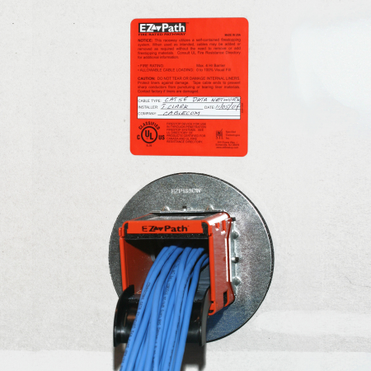

EZDP133CWK 730573000359 EZ-Path Series 33 Fire-Rated Pathway Circular Wall Plate Kit, Full kit with device, one pair (2) circular wall plates & labels 1 1 3.83 lbs EZ-Path Series 33 Fire-Rated Pathway Circular Wall Plate Kit, Full kit with device, one pair (2) circular wall plates & labels
EZDP133FK 730573008355 EZ-Path Series 33 Fire-Rated Pathway Single Kick-In Kit, Full kit with device, single floor kick-in plate & labels 1 1 lbs EZ-Path Series 33 Fire-Rated Pathway Single Kick-In Kit, Full kit with device, single floor kick-in plate & labels
EZDP233GK 730573002353 EZ-Path Series 33 Fire-Rated Pathway Two-Gang Kit, Full kit with two (2) devices, one pair (2) two-gang plates & labels 1 1 lbs EZ-Path Series 33 Fire-Rated Pathway Two-Gang Kit, Full kit with two (2) devices, one pair (2) two-gang plates & labels
EZDP333GK 730573903353 EZ-Path Series 33 Fire-Rated Pathway Three-Gang Kit, Full kit with three (3) devices, one pair (2) three-gang plates & labels 1 1 lbs EZ-Path Series 33 Fire-Rated Pathway Three-Gang Kit, Full kit with three (3) devices, one pair (2) three-gang plates & labels
EZDP33FWS 730573000342 EZ-Path Series 33 Fire-Rated Pathway Device Kit, Full kit with device, square wall plates & labels 1 4 3.52 lbs EZ-Path Series 33 Fire-Rated Pathway Device Kit, Full kit with device, square wall plates & labels
EZDP33WR 730573005330 EZ-Path Series 33 Fire-Rated Pathway Retro-Fit Kit, Full kit with device, wall plates & labels 1 1 lbs EZ-Path Series 33 Fire-Rated Pathway Retro-Fit Kit, Full kit with device, wall plates & labels
EZDP433GK 730573004357 EZ-Path Series 33 Fire-Rated Pathway Four-Gang Kit, Full kit with four (4) devices, one pair (2) four-gang plates & labels 1 1 13.06 lbs EZ-Path Series 33 Fire-Rated Pathway Four-Gang Kit, Full kit with four (4) devices, one pair (2) four-gang plates & labels
EZDP733GK 730573007358 EZ-Path Series 33 Fire-Rated Pathway Seven-Gang Kit, Full kit with seven (7) devices, one pair (2) seven-gang plates & labels 1 1 lbs EZ-Path Series 33 Fire-Rated Pathway Seven-Gang Kit, Full kit with seven (7) devices, one pair (2) seven-gang plates & labels
EZP133CA 730573001387 EZ-Path Series 33 Fire-Rated Pathway Conduit Attachment Plates - One pair (2) & labels 1 1 0.86 lbs EZ-Path Series 33 Fire-Rated Pathway Conduit Attachment Plates - One pair (2) & labels
EZP133CW 730573001370 EZ-Path Series 33 Fire-Rated Pathway Circular Wall Plates - One pair (2) & labels 1 1 0.82 lbs EZ-Path Series 33 Fire-Rated Pathway Circular Wall Plates - One pair (2) & labels
EZP133K 730573008331 EZ-Path Series 33 Fire-Rated Pathway Single Kick-In Plate (For use with floor applications) 1 6 0.71 lbs EZ-Path Series 33 Fire-Rated Pathway Single Kick-In Plate (For use with floor applications)
EZP133R 730573005354 EZ-Path Series 33 Fire-Rated Pathway Retro-Fit Mounting Plates - One pair (2) & labels 1 1 3.57 lbs EZ-Path Series 33 Fire-Rated Pathway Retro-Fit Mounting Plates - One pair (2) & labels
EZP133W 730573001332 EZ-Path Series 33 Fire-Rated Pathway Single Square Wall Plates - One pair (2) & labels 1 1 0.81 lbs EZ-Path Series 33 Fire-Rated Pathway Single Square Wall Plates - One pair (2) & labels
EZP233W 730573002339 EZ-Path Series 33 Fire-Rated Pathway Two-Gang Wall Plates - One pair (2) & labels 1 1 0.79 lbs EZ-Path Series 33 Fire-Rated Pathway Two-Gang Wall Plates - One pair (2) & labels
EZP333W 730573003336 EZ-Path Series 33 Fire-Rated Pathway Three-Gang Wall Plates - One pair (2) & labels 1 1 1 lbs EZ-Path Series 33 Fire-Rated Pathway Three-Gang Wall Plates - One pair (2) & labels
EZP433W 730573004333 EZ-Path Series 33 Fire-Rated Pathway Four-Gang Wall Plates - One pair (2) & labels 1 1 1.73 lbs EZ-Path Series 33 Fire-Rated Pathway Four-Gang Wall Plates - One pair (2) & labels
EZP733W 730573007334 EZ-Path Series 33 Fire-Rated Pathway Seven-Gang Wall Plates - One pair (2) & labels 1 1 lbs EZ-Path Series 33 Fire-Rated Pathway Seven-Gang Wall Plates - One pair (2) & labels
RCM33 730573009338 EZ-Path Series 33 Fire-Rated Pathway Radius Control Modules - One Pair (2) 1 1 lbs EZ-Path Series 33 Fire-Rated Pathway Radius Control Modules - One Pair (2)
EZ-Path Series 33 Fire-rated Pathway

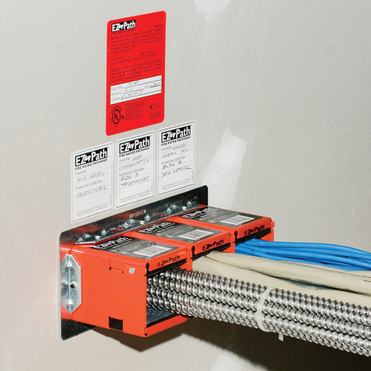

Designed for new or existing cable installations through up to 9″ (22.9 cm) thick walls, or floors the Series 33 pathway holds up to 120 CAT 5E cables.
