SpecSeal ES Elastomeric Firestop Sealant

SpecSeal ES Elastomeric Firestop Sealant
SpecSeal ES Elastomeric Firestop Sealant
SpecSeal ES Elastomeric Firestop Sealant
SpecSeal ES Elastomeric Firestop Sealant

SpecSeal ES Elastomeric Firestop Sealant

SpecSeal ES Sealant is a latex-based gun grade elastomeric firestop sealant designed for construction joint applications. Once cured, ES Sealant forms a flexible shield against the passage of fire and smoke. In dynamic joint conditions, ES Sealant is tested to accommodate up to 25% compression/extension of the installed joint width.

Test Standards ASTM E90
 ASTM E1966 (UL2079)
 ASTM G21
 CAN/ULC-S115
Third Party Approvals
Contact Us
Key Resources
Key Tools

BIM Smith Page

Interactive 3D Model

Features

  • Safe, no solvents, no asbestos, No PCBs, no inorganic fibers
  • Thixotropic for high-build application
  • Non-halogenated
  • Water-based for easy installation & cleanup
Applications
Wall-to-Wall
Head-of-Wall
Floor-to-Floor
Floor-to-Wall
Bottom-of-Wall
Properties
Permanent
Autobonding
Flexible
Joint Movement
Low VOC
Paintable
STC Rating
Water Based
Water Resistant
Smoke Barrier

Specifications

Property Value
Movement Capabilities ± 25%*
Flame Spread 5**
Smoke Development 5**
Mold & Fungus Growth Rating (ASTM G21) 0
In Service Temperature Less than or equal to 185°F (85°C)
Drying Time Tack Free 2 Hours Dry through 5 to 7 days**
STC Rating (ASTM E90-04/ASTM C919) 62 (Relates to Specific Construction)
VOC Content 39 g/L***
Average Volume Shrinkage (ASTM C1241) 31%
Shelf Life From Date of Manufacture 24 months
Notes *500 Cycles per UL2079, AC30 (ICBO) and ASTM E1399 **Tested to ASTM E84 (UL723) at 14% surface coverage (modified test for sealants and caulks) ***Per SCAQMD Rule 1168 (EPA Method 24)

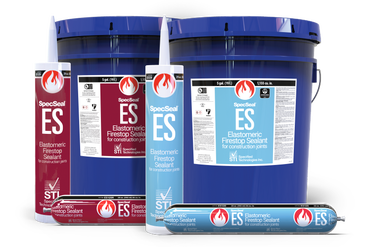

Ordering Information

Catalog Number UPC Number Description (UOM) Qty. Case Qty. Weight (Each) Image
ES105 730573081051 Series ES Elastomeric Sealant 5 Gallon Pail 1,155 Cu. In. (19.0 Liters) 1 1 63.3 lbs Series ES Elastomeric Sealant 5 Gallon Pail 1,155 Cu. In. (19.0 Liters)
ES105R 730573081068 Series ES Elastomeric Sealant - Special Red Color - 5 Gallon Pail 1,155 Cu. In.(19.0 Liters) 1 1 63.3 lbs Series ES Elastomeric Sealant - Special Red Color - 5 Gallon Pail 1,155 Cu. In.(19.0 Liters)
ES120 730573081037 Series ES Elastomeric Sealant 20 Ounce Sausage 36 Cu. In. (592 ml) 1 12 1.97 lbs Series ES Elastomeric Sealant 20 Ounce Sausage 36 Cu. In. (592 ml)
ES120R 730573081044 Series ES Elastomeric Sealant - Special Red Color -20 Ounce Sausage 36 Cu. In. (592 ml) 1 12 1.97 lbs Series ES Elastomeric Sealant - Special Red Color -20 Ounce Sausage 36 Cu. In. (592 ml)
ES129 730573081297 Series ES Elastomeric Sealant 29 Ounce Tube 52 Cu. In. (858ml) 1 12 2.95 lbs Series ES Elastomeric Sealant 29 Ounce Tube 52 Cu. In. (858ml)
ES129R 730573081310 Series ES Elastomeric Sealant - Special Red Color - 29 Ounce Tube 52 Cu. In. (858ml) 1 12 3.05 lbs
SpecSeal ES Elastomeric Firestop Sealant
SpecSeal ES Sealant is a latex-based gun grade elastomeric firestop sealant designed for construction joint applications. Once cured, ES Sealant forms a flexible shield against the passage fire and smoke. In dynamic joint conditions, ES Sealant is tested to accommodate up to 25% compression/extension of the installed joint width.
